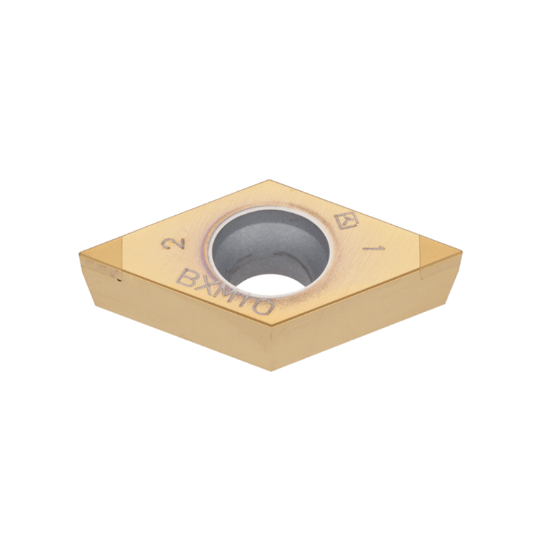

Picture of TUNGALOY 2QP-DCMW21.51 BX930 Insert 55.0° 0.016 Corner Radius

TUNGALOY 2QP-DCMW21.51 BX930 Insert 55.0° 0.016 Corner Radius

ANSI: 2QP-DCMW21.51 BX930

ISO: 2QP-DCMW070204 BX930

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6817945
Delivery date: 3-5 days
$68.60

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Details

Positive 7deg relief ang., M/G class, 55deg rhombic CBN insert

File Downloads

DXFSTPSTPL

Grade and Coating Description

Designed for ductile cast iron

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Medium
Insert Type Positive
Grade BX930
Application Turning Insert
Package Size 10
Made In USA No
Shipping State Illinois
Insert/Tool Insert
Dimensional Specifications
Cut Rating Ductile Iron, Gray Iron
Corner Radius 0.0160 0.41MM
Insert Size Ic 07 "21"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
Cutting Edge Mat CBN
