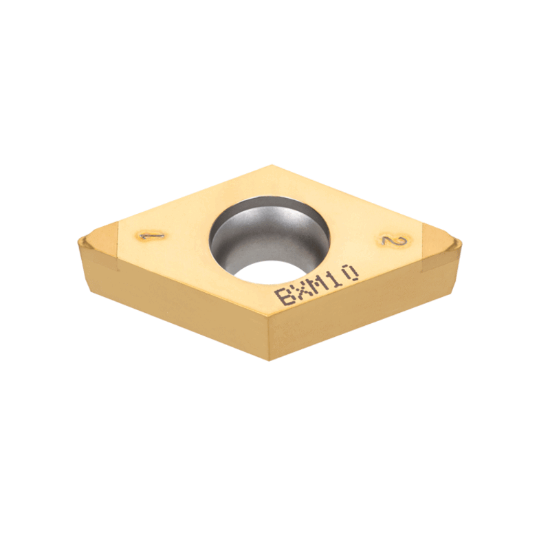

Picture of TUNGALOY 2QP-DCGT32.51 HP BXM10 Insert 55.0° TiCN 0.016 Corner Radius

TUNGALOY 2QP-DCGT32.51 HP BXM10 Insert 55.0° TiCN 0.016 Corner Radius

ANSI: 2QP-DCGT32.51 HP BXM10

ISO: 2QP-DCGT11T304 HP BXM10

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6761665
Delivery date: 3-5 days
$102.87

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Details

Positive 7deg relief ang., G class, 55deg rhombic CBN insert chipbreaker for finishing of hardened steel

File Downloads

DXFSTPSTPL

Grade and Coating Description

Coated T-CBN for excellent performance in high-speed continuous cutting of hardened steel

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Coating TiCN
Package Size 10
Insert Application Medium, Finishing
Application Turning Insert
Made In USA No
Insert Type Positive
Shipping State Illinois
Grade BXM10
Dimensional Specifications
Cut Rating <65HRC Steel, Gray Iron
Insert Size Ic 11 "32"
Corner Radius 0.0160 0.41MM
Cutting & Machining Properties
Insert Style DC
Cutting Edge Mat CBN
Insert Shape/Cutter Pocket Shape 55.0°
