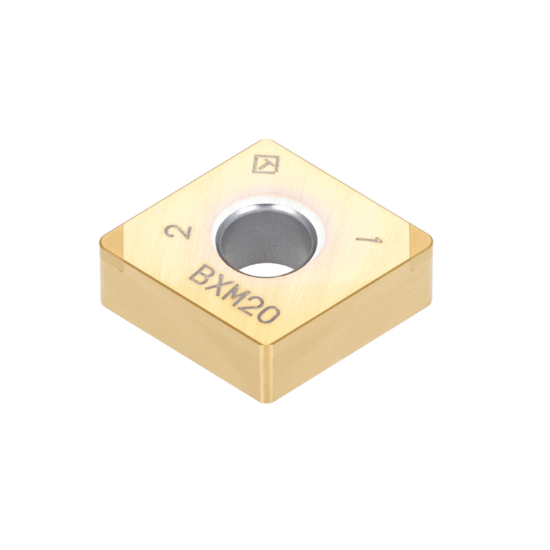

Picture of TUNGALOY 2QP-CNGA433-L BXM20 Insert 80.0° TiCN 0.047 Corner Radius

TUNGALOY 2QP-CNGA433-L BXM20 Insert 80.0° TiCN 0.047 Corner Radius

ANSI: 2QP-CNGA433-L BXM20

ISO: 2QP-CNGA120412 L BXM20

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6804765
Delivery date: 3-5 days
$63.22

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Details

Negative relief ang., M/G class, 80deg rhombic CBN insert

File Downloads

DXFSTPSTPL

Grade and Coating Description

Coated T-CBN for machining hardened steel in a wide range of application area

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Insert
Insert Type Negative
Made In USA No
Shipping State Illinois
Insert Application Medium, Finishing
Application Turning Insert
Package Size 10
Coating TiCN
Grade BXM20
Dimensional Specifications
Corner Radius 0.0470 1.19MM
Insert Size Ic 12 "43"
Cut Rating <65HRC Steel, Gray Iron
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Insert Style CN
Cutting Edge Mat CBN
