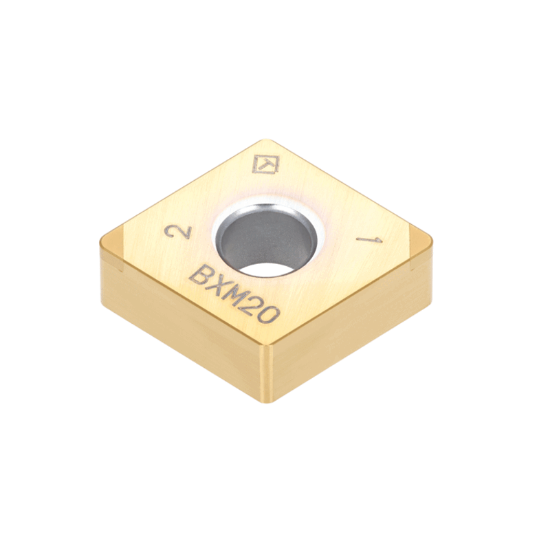

Picture of TUNGALOY 2QP-CNGA431-H BXM20 Insert 80.0° TiCN 0.016 Corner Radius

TUNGALOY 2QP-CNGA431-H BXM20 Insert 80.0° TiCN 0.016 Corner Radius

ANSI: 2QP-CNGA431-H BXM20

ISO: 2QP-CNGA120404 H BXM20

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TUNGALOY
SKU: TUN6804790
Delivery date: 3-5 days
$63.22

Cutting Edge Definition

Polycrystalline cbn is a highly durable material, similar to diamond in its composition and properties. It can process a wide variety of materials, from steel and cast iron to alloys of high strength and hardness. In addition, PCBN can resist oxidation at high temperatures. These properties make it ideal for cutting tools.

Details

Negative relief ang., M/G class, 80deg rhombic CBN insert

File Downloads

DXFSTPSTPL

Grade and Coating Description

Coated T-CBN for machining hardened steel in a wide range of application area

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Negative
Shipping State Illinois
Insert/Tool Insert
Insert Application Finishing, Medium
Coating TiCN
Grade BXM20
Package Size 10
Application Turning Insert
Made In USA No
Dimensional Specifications
Cut Rating <65HRC Steel, Gray Iron
Insert Size Ic 12 "43"
Corner Radius 0.0160 0.41MM
Cutting & Machining Properties
Insert Style CN
Insert Shape/Cutter Pocket Shape 80.0°
Cutting Edge Mat CBN
