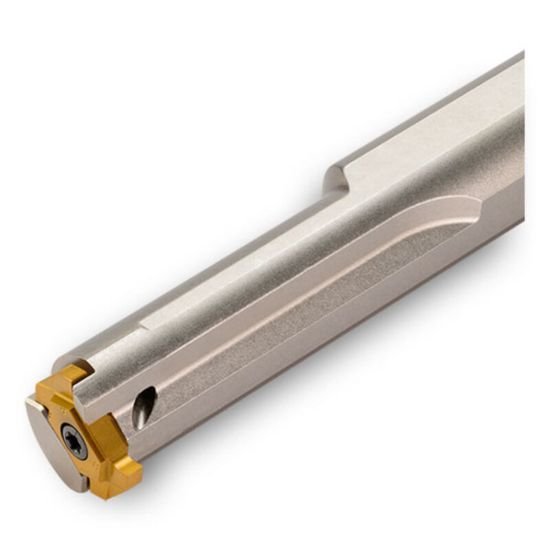

Picture of TQHIL15.9-16.5-14 Ingersoll 6210661 Grooving Boring Bar 0.6250 15.88mm - 5/8 Shank

TQHIL15.9-16.5-14 Ingersoll 6210661 Grooving Boring Bar 0.6250 15.88mm - 5/8 Shank

Part Number: ING6210661 ISO: TQHIL15.9-16.5-14 ANSI:TQHIL15.9-16.5-14

Need Assistance or Service? Please call 262-251-4020

Manufacturer: INGERSOLL
SKU: 1081374
Vendor: Sussex Tool and Supply
$267.32
INGERSOLL 6210661 Dog Bone Grooving Boring Bar Dia0.6250 Positive Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Boring Bar
Tool Material Steel
Machine Side Connection Type Boring Bar
Mach Side Connection Size 0.6250 15.88MM
Overall Length 5.0000 127.00MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Type Of Tool Boring Bar
Insert/Tool TOOL
Cut Type General Purpose
Insert Style TQ
Insert Shape/Cutter Pocket Shape Dog Bone
Insert Type Positive
Insert Size Ic 14
Inter/Extern Internal
Neck Length 1.5700 39.88MM
Insert Type/Oriantation On Edge
Min Bore 0.6500
