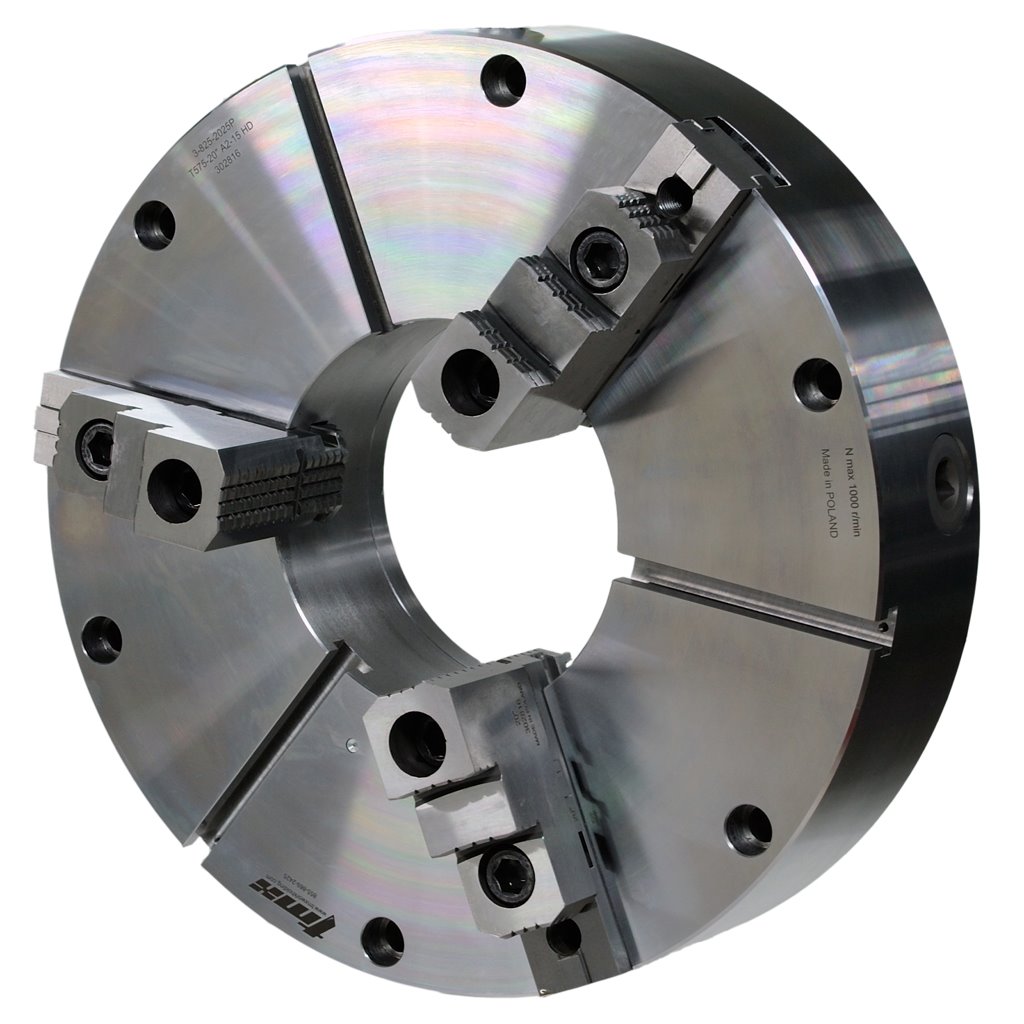

Picture of Toolmex 3-825-4020P Scroll Chuck 6.060 Bar Capacity 3 Jaws 39.3700 999.90mm Dia

Toolmex 3-825-4020P Scroll Chuck 6.060 Bar Capacity 3 Jaws 39.3700 999.90mm Dia

Part Number: TOO3-825-4020P

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TOOLMEX
SKU: 1423871
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
3 Jaw, 40" (1000 MM Actual) Diameter, A2-20, Forged Steel, Extra Heavy Duty, Oil County, Self Centering, Manual Scroll Lathe Chuck, 16.06" Through Hole (Bore), Max Gripping Force 12000 (Dan), American Standard Tongue And Grove 2-Piece Hard Jaws Steel
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Tool Material Steel
Machine Side Connection Type Lathe Adapter
Overall Length 7.4800 189.99MM
Tool Dia 39.3700 999.90MM
Type Of Tool Chuck
Max RPM 611
Bar Capacity 16.060
Bolt Circle 18.250
Spindle Nose A2-20
Number Of Jaws 3
Max Clamping Force Lbs 26977
