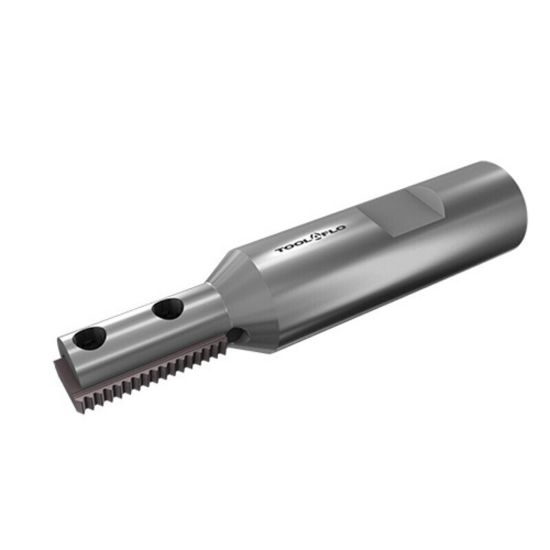

Tool-FLO TMNB126251 Thread Milling Insert

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TOOL-FLO
SKU: TOOTMNB126251
Delivery date: 3-5 days
$269.48

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Shipping State Texas
Performance Rating High Performance
Application Thread Milling
Package Size 2
Dimensional Specifications
Flutes/Inserts 1
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutter Dia 0.6250 15.88MM - 5/8
Length Of Cut 1.0000 25.40MM
Cut Rating <40HRC, Stainless, Iron, High Temp
Overall Len 3.5000 88.90MM
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Coolant Thru No
Inter/Extern Int / Ext
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
