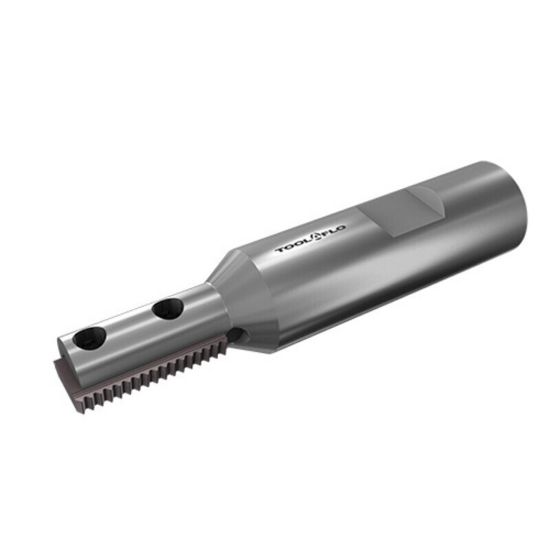

Tool-FLO TMNB126111 Thread Milling Insert

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TOOL-FLO
SKU: TOOTMNB126111
Delivery date: 3-5 days
$268.92

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Shipping State Texas
Made In USA Yes
Application Thread Milling
Package Size 2
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cut Rating <40HRC, Stainless, Iron, High Temp
Overall Len 3.5000 88.90MM
Flutes/Inserts 1
Machine Side Connection Type Cylindrical
Length Of Cut 1.0000 25.40MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutter Dia 0.6110 15.52MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Inter/Extern Int / Ext
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
Energy Yes
Automotive Yes
