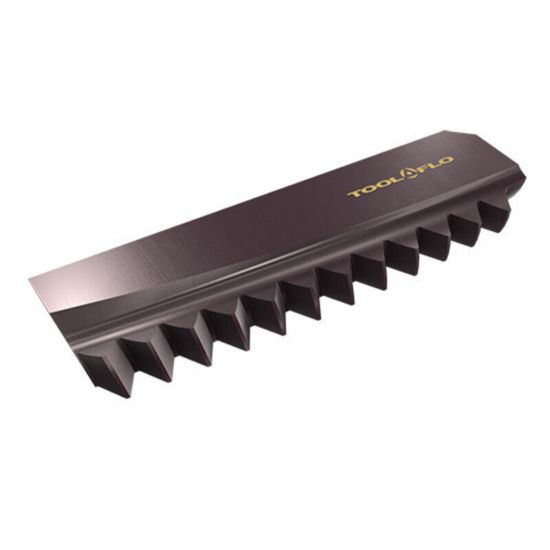

Tool-FLO TMCS0228524U AC22 Thread Milling Insert TiAlN Coating 24.00TPI

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TOOL-FLO
SKU: TOOTMCS0228524UAC22
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Coating TiAlN Coating
Performance Rating High Performance
Grade AC2
Shipping State Texas
Application Thread Milling
Made In USA Yes
Package Size 1
Dimensional Specifications
Thread Pitch 24.00TPI
Cut Rating <40HRC, Stainless, Iron, High Temp
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Dia 0.2850 7.24MM
Overall Len 3.0000 76.20MM
Thread Size 3/8"
Shank/Pilot Dia 0.3120 7.92MM
Flutes/Inserts 4
Length Of Cut 0.7500 19.05MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Inter/Extern Int / Ext
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Job Shop Yes
Medical Yes
Energy Yes
Aerospace Yes
