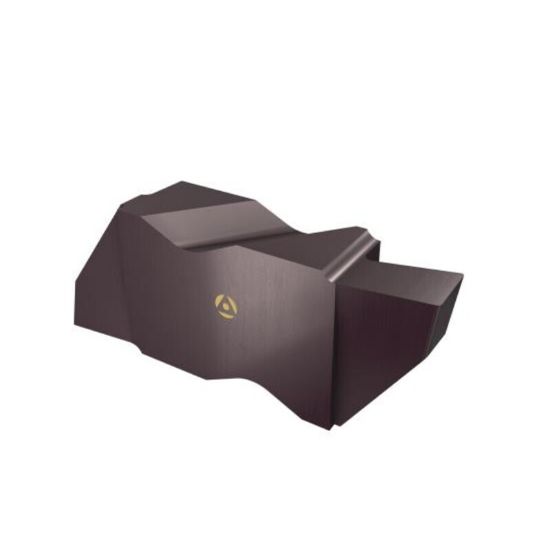

Tool-FLO FLGP-2125R C3 Top Notch Grooving Insert TiN 0.125 Wide 0.005 Corner Radius

ANSI: FLGP-2125R C3

ISO: FLGP-2125R C3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TOOL-FLO
SKU: TOO572625RC3
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Details

General purpose grooving

Grade and Coating Description

PVD TIN Coated C2 Grade for special applications. Non-Stock

Products specifications
Attribute name Attribute value
General Product Information
Grade C3
Application Grooving & Parting Insert
Made In USA Yes
Shipping State Texas
Package Size 10
Insert Type Positive
Coating TiN
Insert Application General Purpose
Insert/Tool Insert
Dimensional Specifications
Insert Size Ic 2
Cut Rating <40HRC Steel, Aluminum, Brass, Copper, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Corner Radius 0.0050 0.13MM - 0.0100 0.25MM
Cutting Width 0.1250 3.18MM
Depth Of Cut Max 0.1100
Cutting & Machining Properties
Insert Style TOP NOTCH
Cutting Edge Mat Carbide
Insert Shape/Cutter Pocket Shape Top Notch
