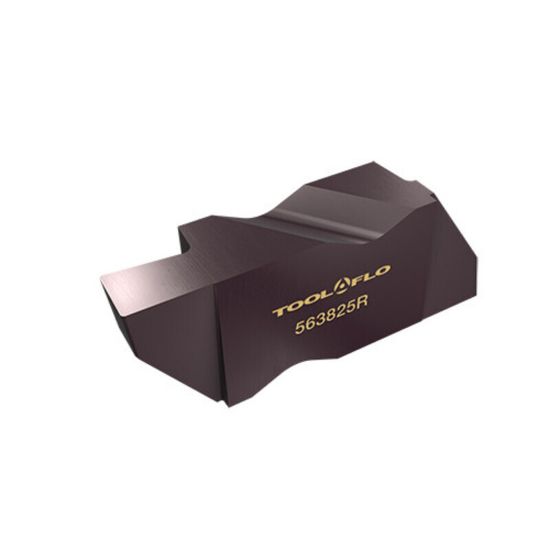

Tool-FLO FLG-4312R GP50 Top Notch Grooving Insert TiN 0.312 Wide 0.030 Corner Radius

ANSI: FLG-4312R GP50

ISO: FLG-4312R GP50

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TOOL-FLO
SKU: TOO574212RGP50
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Details

General purpose grooving

Grade and Coating Description

PVD TiN grade with a medium tough substrate and excellent wear properties. Great general purpose grade for steel applications.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 10
Insert/Tool Insert
Coating TiN
Application Grooving & Parting Insert
Grade GP50
Made In USA Yes
Shipping State Texas
Insert Type Positive
Insert Application General Purpose
Dimensional Specifications
Cutting Width 0.3120 7.92MM
Corner Radius 0.0300 0.76MM - 0.0350 0.89MM
Cut Rating <40HRC Steel, Ductile Iron, Stainless Steel
Depth Of Cut Max 0.2500
Insert Size Ic 4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Top Notch
Insert Style TOP NOTCH
Cutting Edge Mat Carbide
