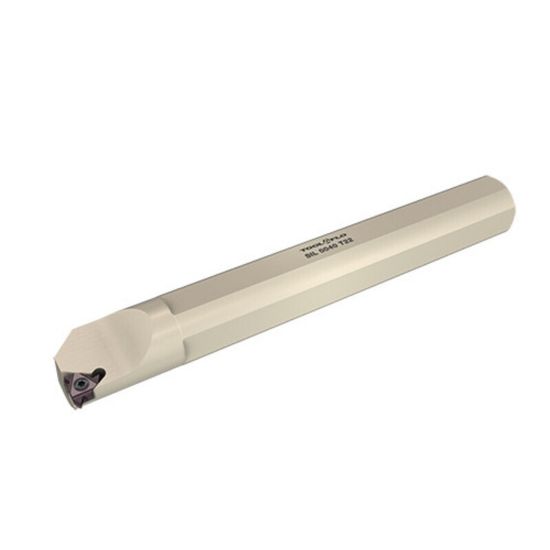

Picture of Tool-FLO AVR 150-4R Threading Boring Bar Iso Thread Boring Bar 1.500 Right

Tool-FLO AVR 150-4R Threading Boring Bar Iso Thread Boring Bar 1.500 Right

ANSI: AVR 150-4R

ISO: AVR 150-4R

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TOOL-FLO
SKU: TOO918072401
Delivery date: 3-5 days
$213.77
Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Positive
Application Int.Groove Threading, Int.Threading
Package Size 1
Shipping State Texas
Insert/Tool Tool
Made In USA Yes
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Boring Bar
Shank/Pilot Dia 1.5000 38.10MM - 1-1/2
Insert Size Ic 22
Overall Len 12.0000 304.80MM
Machine Side Connection Size 1.5000 38.10MM
Min Bore 1.8000
Cutting & Machining Properties
Inter/Extern Internal
Seat/Nest YI4
Insert Shape/Cutter Pocket Shape Triangle
Insert Style ISO
Hand R/L Right
Fasteners & Connectors
Seat Screw SY4
Insert Screw SA4
