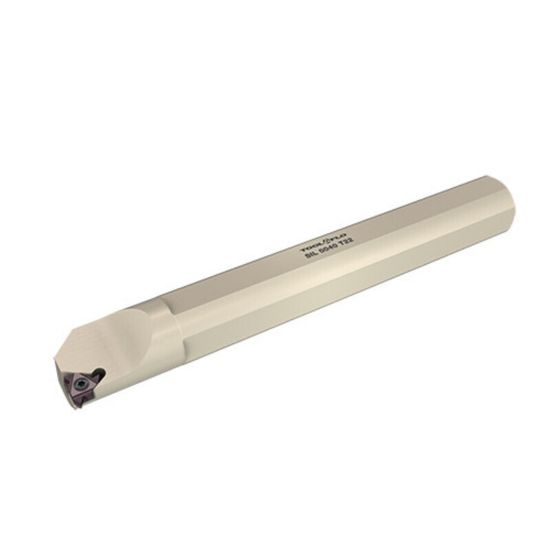

Picture of Tool-FLO AVR 125-5L Threading Boring Bar Iso Thread Boring Bar 1.250 Left

Tool-FLO AVR 125-5L Threading Boring Bar Iso Thread Boring Bar 1.250 Left

ANSI: AVR 125-5L

ISO: AVR 125-5L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: TOOL-FLO
SKU: TOO918068442
Delivery date: 3-5 days
$157.33
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Int.Threading, Int.Groove Threading
Insert/Tool Tool
Made In USA Yes
Insert Type Positive
Shipping State Texas
Insert Application General Purpose
Dimensional Specifications
Min Bore 1.8000
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Insert Size Ic 27
Tool Material Steel
Overall Len 10.0000 254.00MM
Machine Side Connection Type Boring Bar
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Inter/Extern Internal
Insert Style ISO
Seat/Nest YE5
Insert Shape/Cutter Pocket Shape Triangle
Hand R/L Left
Fasteners & Connectors
Insert Screw SA5
Seat Screw SY5
