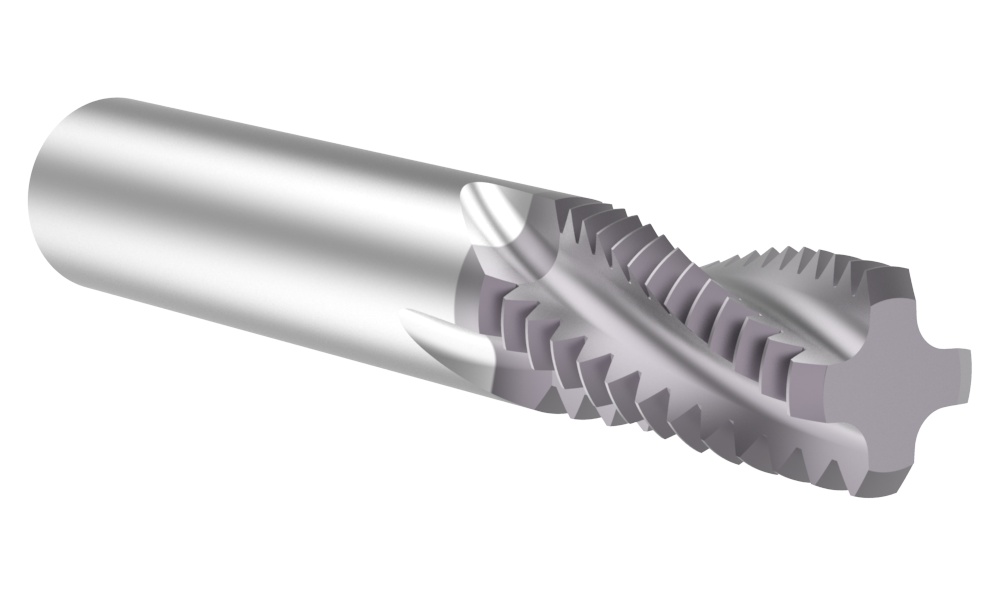

Picture of Thread Mill USA TM87509CH Carbide 7/8" x 9.00TPI UN 0.620 Cut Dia Cylindrical 0.6250 4.000 OAL TIALN

Thread Mill USA TM87509CH Carbide 7/8" x 9.00TPI UN 0.620 Cut Dia Cylindrical 0.6250 4.000 OAL TIALN

Part Number: THRTM87509CH ISO: TM87509CH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ALLIED MACHINE
SKU: 1291639
Vendor: Sussex Tool and Supply
$347.00
THREAD MILL USA TM87509CH Carbide Thread Mill Helical 7/8" 9.00TPI UN TIALN Carbide TiAlN (Titanium Aluminum Nitride) is a type of surface coating used to improve the performance and durability of tools and components, particularly in high-speed machining, hard machining, and stainless steel machining. It is characterized by high hardness, thermal stability, and oxidation resistance, making it suitable for demanding applications.
Products specifications
Attribute name Attribute value
Shipping State Georgia
Made In USA YES
Cutter Type Mill Thread
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <53HRC Steel, Aluminum, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating TiAlN
Mach Side Connection Size 0.6250 15.88MM
Overall Length 4.0000 101.60MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Tool Dia 0.6200 15.75MM
Type Of Tool Thread Mill
Length Of Cut 1.3750 34.93MM
Cutter Style Carbide Thread Mill
Helix Angle 28
Thread Pitch 9.00TPI
Thread Type UN
Thread Size 7/8"
