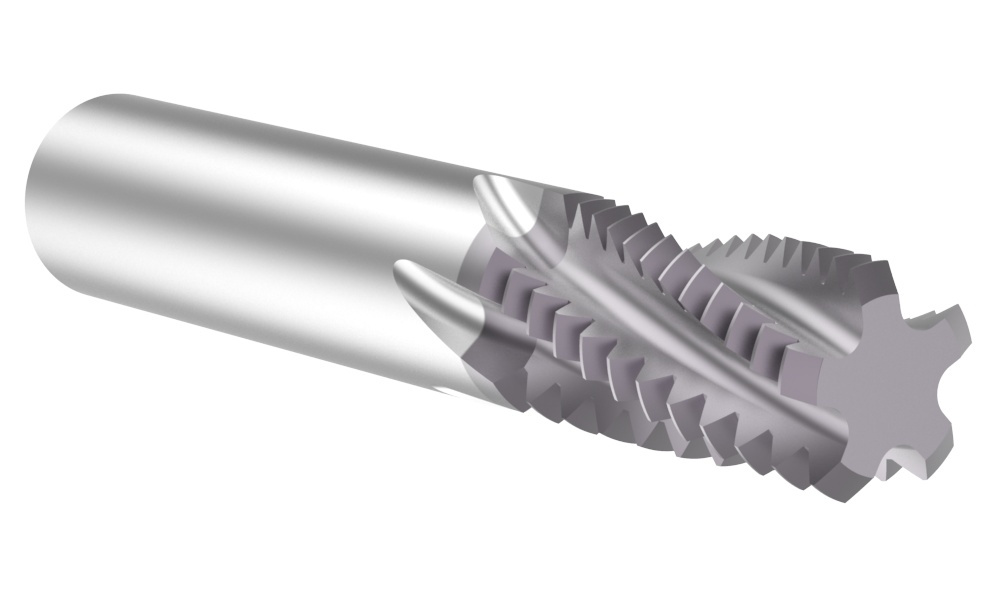

Picture of Thread Mill USA TM62511CH Carbide 5/8" x 11.00TPI UN 0.470 Cut Dia Cylindrical 0.5000 3.500 OAL TIALN

Thread Mill USA TM62511CH Carbide 5/8" x 11.00TPI UN 0.470 Cut Dia Cylindrical 0.5000 3.500 OAL TIALN

Part Number: THRTM62511CH ISO: TM62511CH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ALLIED MACHINE
SKU: 1291635
Vendor: Sussex Tool and Supply
$270.50
THREAD MILL USA TM62511CH Carbide Thread Mill Helical 5/8" 11.00TPI UN TIALN Carbide TiAlN (Titanium Aluminum Nitride) is a type of surface coating used to improve the performance and durability of tools and components, particularly in high-speed machining, hard machining, and stainless steel machining. It is characterized by high hardness, thermal stability, and oxidation resistance, making it suitable for demanding applications.
Products specifications
Attribute name Attribute value
Shipping State Georgia
Made In USA YES
Cutter Type Mill Thread
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <53HRC Steel, Aluminum, Stainless Steel, Ductile Iron, Gray Iron, High Temp
Coating TiAlN
Mach Side Connection Size 0.5000 12.70MM
Overall Length 3.5000 88.90MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Tool Dia 0.4700 11.94MM
Type Of Tool Thread Mill
Length Of Cut 1.2500 31.75MM
Cutter Style Carbide Thread Mill
Helix Angle 28
Thread Pitch 11.00TPI
Thread Type UN
Thread Size 5/8"
