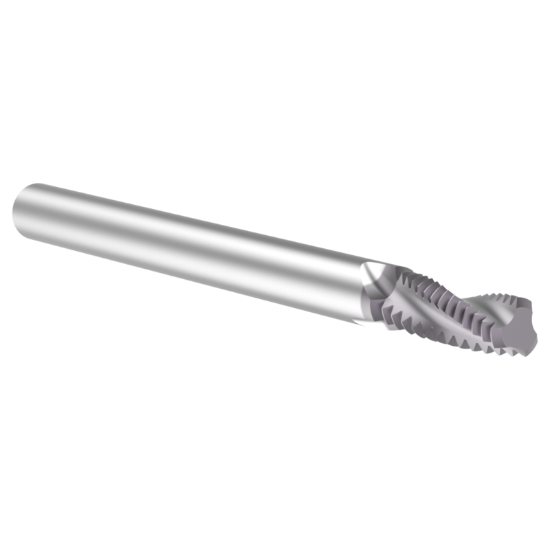

Thread MILL USA TM60100 Carbide M6 x 1.00MM Metric 0.170 Cut Dia Cylindrical 0.1870 2.500 OAL TIALN

ISO: TM60100

Need Assistance or Service? Please call 262-251-4020

Manufacturer: THREAD MILL USA
SKU: THRTM60100
Delivery date: 3-5 days
$112.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Package Size 1
Application Thread Milling
Coating TiAlN
Shipping State Georgia
Dimensional Specifications
Thread Pitch 1.00MM
Machine Side Connection Size 0.1870 4.75MM
Length Of Cut 0.5000 12.70MM
Thread Type Metric
Cut Rating <53Hrc Steel,Aluminum,Ductile Iron,Gray Iron,High Temp,Stainless Steel
Helix Angle 28°
Shank/Pilot Dia 0.1870 4.75MM
Cutter Style Carbide Thread Mill
Cutter Dia 0.1700 4.32MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Thread Size M6
Overall Len 2.5000 63.50MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
