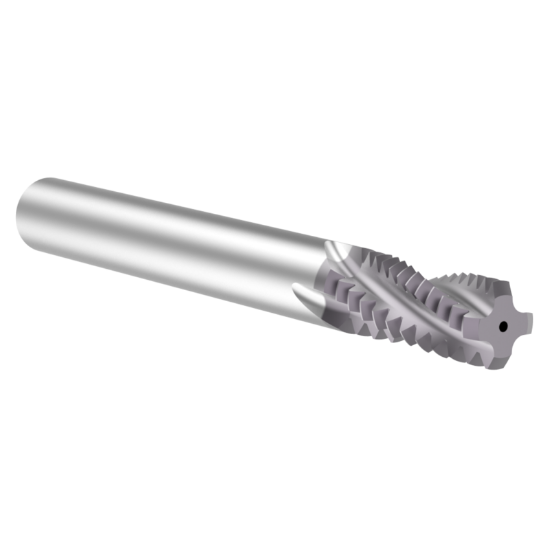

Thread MILL USA TM43714CH Carbide 7/16" x 14.00TPI UN 0.305 Cut Dia Cylindrical 0.3125 3.000 OAL TIALN

ISO: TM43714CH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: THREAD MILL USA
SKU: THRTM43714CH
Delivery date: 3-5 days
$186.20

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Coating TiAlN
Shipping State Georgia
Made In USA Yes
Application Thread Milling
Dimensional Specifications
Length Of Cut 0.7500 19.05MM
Thread Pitch 14.00TPI
Cut Rating <53Hrc Steel,Aluminum,Ductile Iron,Gray Iron,High Temp,Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Helix Angle 28°
Thread Size 7/16"
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Overall Len 3.0000 76.20MM
Thread Type UN
Cutter Style Carbide Thread Mill
Machine Side Connection Size 0.3120 7.92MM
Cutter Dia 0.3050 7.75MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
Industry-Specific Applications
Agricultural YES
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Medical Yes
Energy Yes
