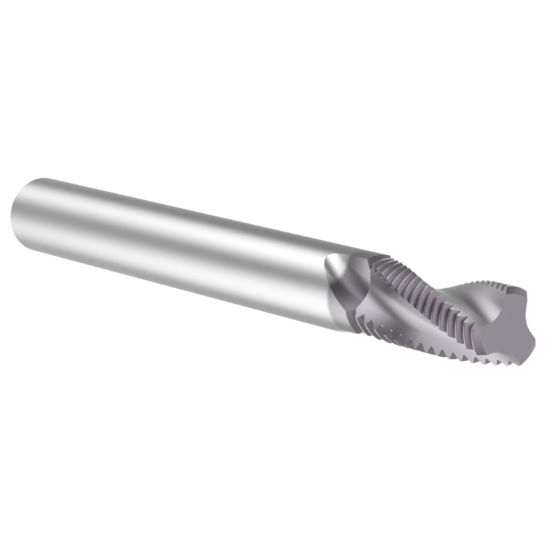

Thread MILL USA TM28BSPP Carbide 1/16" x 28.00TPI BSPP 0.240 Cut Dia Cylindrical 0.2500 2.500 OAL TIALN

ISO: TM28BSPP

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ALLIED
SKU: THRTM28BSPP
Delivery date: 3-5 days
$136.73

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Thread Milling
Shipping State Georgia
Package Size 1
Made In USA Yes
Coating TiAlN
Dimensional Specifications
Thread Size 1/16"
Cutter Dia 0.2400 6.10MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Thread Type BSPP
Overall Len 2.5000 63.50MM
Length Of Cut 0.5720 14.53MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Cutter Style Carbide Thread Mill
Cut Rating <53Hrc Steel,Aluminum,Ductile Iron,Gray Iron,High Temp,Stainless Steel
Helix Angle 28°
Thread Pitch 28.00TPI
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Automotive Yes
Agricultural YES
Energy Yes
Medical Yes
Aerospace Yes
Job Shop Yes
Mold Yes
