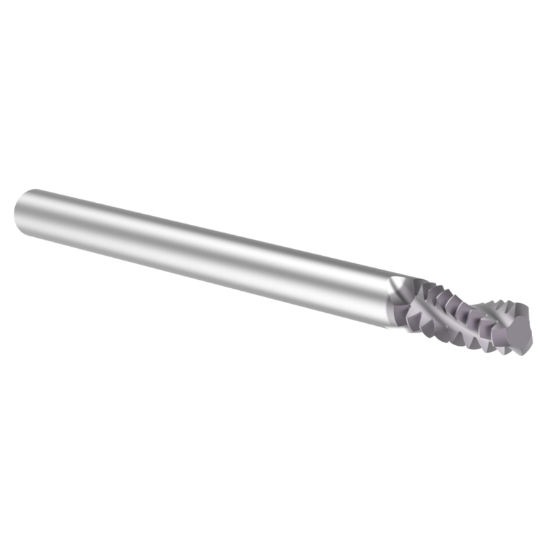

Thread MILL USA TM19024 Carbide #10 x 24.00TPI UN 0.120 Cut Dia Cylindrical 0.1250 2.000 OAL TIALN

ISO: TM19024

Need Assistance or Service? Please call 262-251-4020

Manufacturer: THREAD MILL USA
SKU: THRTM19024
Delivery date: 3-5 days
$105.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Thread Milling
Shipping State Georgia
Made In USA Yes
Coating TiAlN
Dimensional Specifications
Thread Size No.10
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Overall Len 2.0000 50.80MM
Length Of Cut 0.3120 7.92MM
Cut Rating <53Hrc Steel,Aluminum,Ductile Iron,Gray Iron,High Temp,Stainless Steel
Helix Angle 28°
Cutter Style Carbide Thread Mill
Thread Pitch 24.00TPI
Thread Type UN
Cutter Dia 0.1200 3.05MM - #31
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Medical Yes
