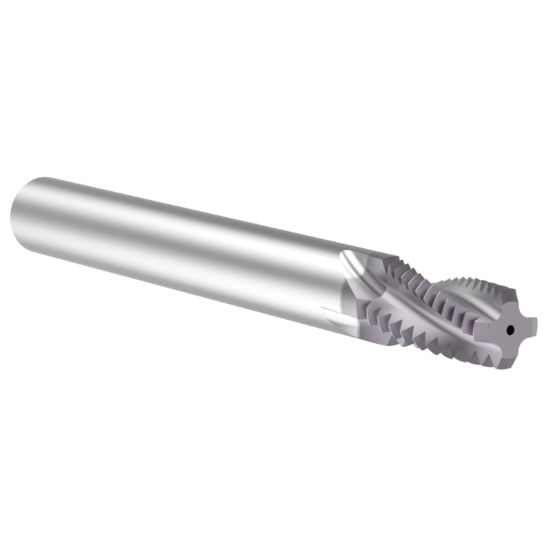

Thread MILL USA TM18NPTCH Carbide 1/4" x 18.00TPI NPT 0.305 Cut Dia Cylindrical 0.3125 3.000 OAL TIALN

ISO: TM18NPTCH

Need Assistance or Service? Please call 262-251-4020

Manufacturer: THREAD MILL USA
SKU: THRTM18NPTCH
Delivery date: 3-5 days
$186.20

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Coating TiAlN
Shipping State Georgia
Application Thread Milling
Package Size 1
Dimensional Specifications
Tool Material Carbide
Thread Size 1/4"
Cut Rating <53Hrc Steel,Aluminum,Ductile Iron,Gray Iron,High Temp,Stainless Steel
Machine Side Connection Type Cylindrical
Helix Angle 28°
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Overall Len 3.0000 76.20MM
Thread Pitch 18.00TPI
Cutter Dia 0.3050 7.75MM
Machine Side Connection Size 0.3125 7.94MM
Cutter Style Carbide Thread Mill
Length Of Cut 0.6250 15.88MM
Thread Type NPT
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
