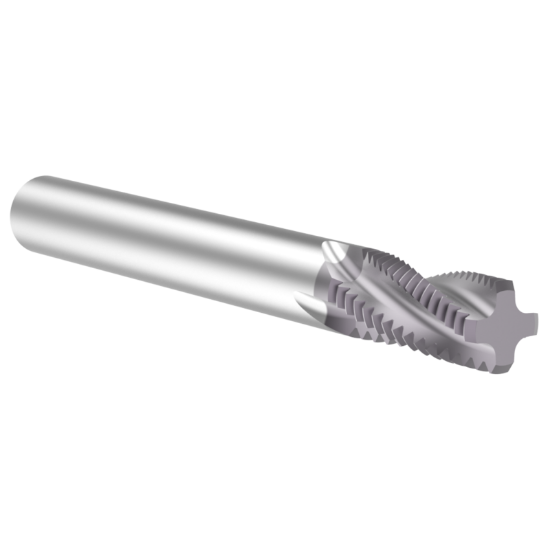

Thread MILL USA TM14150 Carbide M14 x 1.50MM Metric 0.370 Cut Dia Cylindrical 0.3750 3.500 OAL TIALN

ISO: TM14150

Need Assistance or Service? Please call 262-251-4020

Manufacturer: THREAD MILL USA
SKU: THRTM14150
Delivery date: 3-5 days
$170.33

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Thread Milling
Coating TiAlN
Shipping State Georgia
Package Size 1
Made In USA Yes
Dimensional Specifications
Thread Type Metric
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Dia 0.3700 9.40MM
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Overall Len 3.5000 88.90MM
Thread Size M14
Thread Pitch 1.50MM
Machine Side Connection Size 0.3750 9.53MM
Length Of Cut 0.8750 22.23MM
Cutter Style Carbide Thread Mill
Cut Rating <53Hrc Steel,Aluminum,Ductile Iron,Gray Iron,High Temp,Stainless Steel
Helix Angle 28°
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Aerospace Yes
Mold Yes
Automotive Yes
Job Shop Yes
Agricultural YES
Energy Yes
