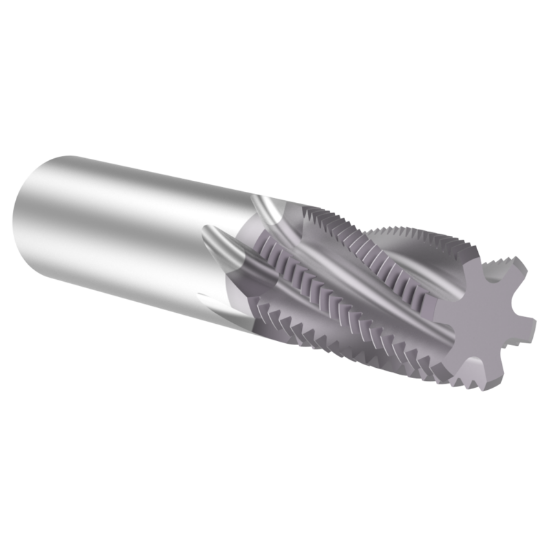

Thread MILL USA TM10012 Carbide 1" x 12.00TPI UN 0.745 Cut Dia Cylindrical 0.7500 4.000 OAL TIALN

ISO: TM10012

Need Assistance or Service? Please call 262-251-4020

Manufacturer: THREAD MILL USA
SKU: THRTM10012
Delivery date: 3-5 days
$351.40

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Thread Milling
Shipping State Georgia
Made In USA Yes
Coating TiAlN
Dimensional Specifications
Thread Pitch 12.00TPI
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Length Of Cut 1.5000 38.10MM
Cut Rating <53Hrc Steel,Aluminum,Ductile Iron,Gray Iron,High Temp,Stainless Steel
Cutter Dia 0.7450 18.92MM
Overall Len 4.0000 101.60MM
Helix Angle 28°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.7500 19.05MM
Thread Type UN
Thread Size 1"
Cutter Style Carbide Thread Mill
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Energy Yes
Medical Yes
Automotive Yes
Aerospace Yes
Job Shop Yes
Mold Yes
