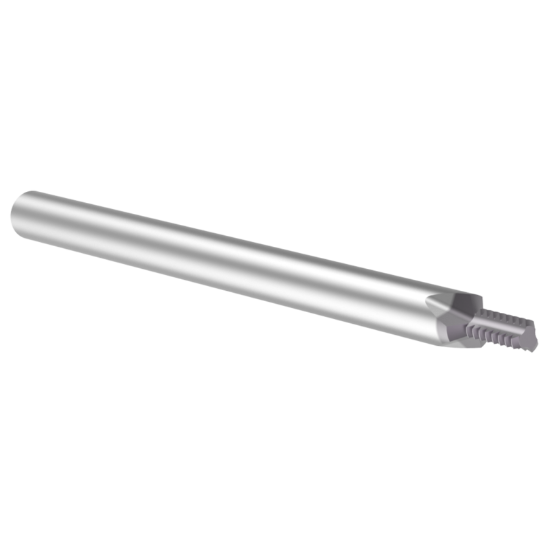

Thread MILL USA TM09948 Carbide #3 x 48.00TPI UN 0.075 Cut Dia Cylindrical 0.1250 2.000 OAL TIALN

ISO: TM09948

Need Assistance or Service? Please call 262-251-4020

Manufacturer: THREAD MILL USA
SKU: THRTM09948
Delivery date: 3-5 days
$105.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Thread Milling
Coating TiAlN
Shipping State Georgia
Made In USA Yes
Dimensional Specifications
Thread Type UN
Cutter Dia 0.0750 1.91MM
Cutter Style Carbide Thread Mill
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Overall Len 2.0000 50.80MM
Length Of Cut 0.1670 4.24MM
Thread Pitch 48.00TPI
Thread Size No.3
Cut Rating <53Hrc Steel,Aluminum,Ductile Iron,Gray Iron,High Temp,Stainless Steel
Helix Angle 28°
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Automotive Yes
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
