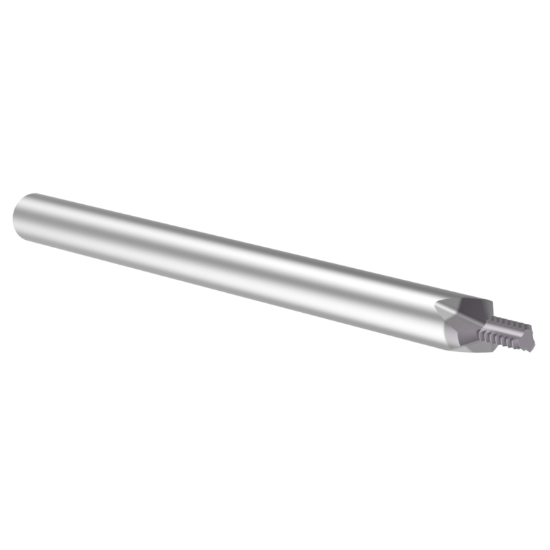

Thread MILL USA TM08656 Carbide #2 x 56.00TPI UN 0.065 Cut Dia Cylindrical 0.1250 2.000 OAL TIALN

ISO: TM08656

Need Assistance or Service? Please call 262-251-4020

Manufacturer: THREAD MILL USA
SKU: THRTM08656
Delivery date: 3-5 days
$105.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Coating TiAlN
Made In USA Yes
Application Thread Milling
Shipping State Georgia
Dimensional Specifications
Thread Size No.2
Cutter Dia 0.0650 1.65MM
Cutter Style Carbide Thread Mill
Thread Pitch 56.00TPI
Cut Rating <53Hrc Steel,Aluminum,Ductile Iron,Gray Iron,High Temp,Stainless Steel
Helix Angle 28°
Thread Type UN
Length Of Cut 0.1250 3.18MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Overall Len 2.0000 50.80MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Agricultural YES
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Medical Yes
Automotive Yes
