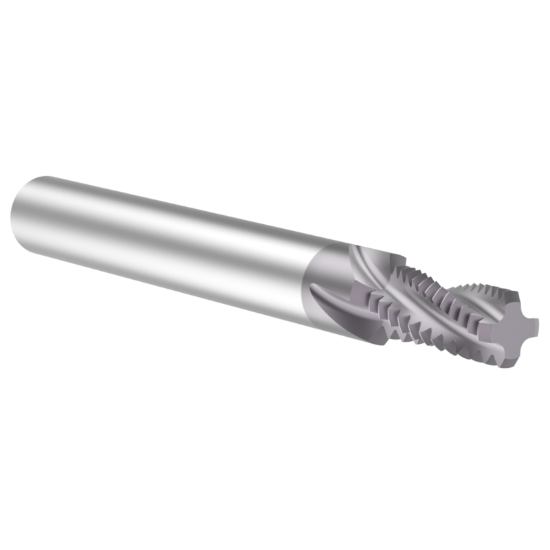

Thread MILL USA HDTM37516 Carbide 3/8" x 16.00TPI UN 0.300 Cut Dia Cylindrical 0.3750 3.500 OAL TIALN

ISO: HDTM37516

Need Assistance or Service? Please call 262-251-4020

Manufacturer: THREAD MILL USA
SKU: THRHDTM37516
Delivery date: 3-5 days
$162.40

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Coating TiAlN
Shipping State Georgia
Application Thread Milling
Made In USA Yes
Dimensional Specifications
Cut Rating <53Hrc Steel,Aluminum,Ductile Iron,Gray Iron,High Temp,Stainless Steel
Machine Side Connection Type Cylindrical
Helix Angle 28°
Thread Size 3/8"
Length Of Cut 0.7500 19.05MM
Thread Type UN
Thread Pitch 16.00TPI
Tool Material Carbide
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Overall Len 3.5000 88.90MM
Machine Side Connection Size 0.3750 9.53MM
Cutter Style Carbide Thread Mill
Cutter Dia 0.3000 7.62MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
