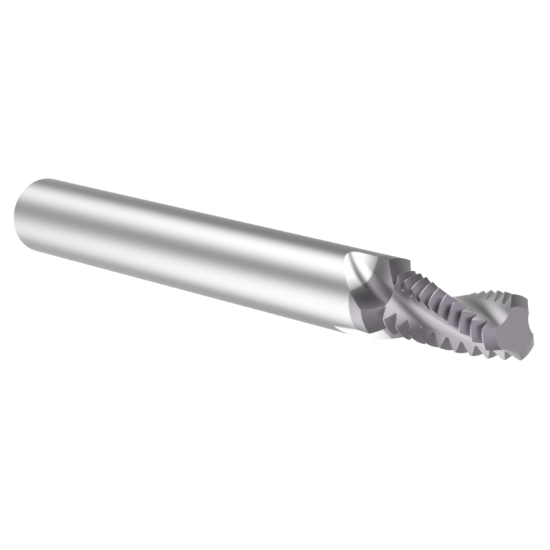

Thread MILL USA HDTM25020 Carbide 1/4" x 20.00TPI UN 0.195 Cut Dia Cylindrical 0.2500 2.500 OAL TIALN

ISO: HDTM25020

Need Assistance or Service? Please call 262-251-4020

Manufacturer: THREAD MILL USA
SKU: THRHDTM25020
Delivery date: 3-5 days
$125.07

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Thread Milling
Shipping State Georgia
Package Size 1
Made In USA Yes
Coating TiAlN
Dimensional Specifications
Cutter Dia 0.1950 4.95MM
Thread Pitch 20.00TPI
Cutter Style Carbide Thread Mill
Thread Type UN
Overall Len 2.5000 63.50MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Thread Size 1/4"
Cut Rating <53Hrc Steel,Aluminum,Ductile Iron,Gray Iron,High Temp,Stainless Steel
Length Of Cut 0.5000 12.70MM
Helix Angle 28°
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Automotive Yes
Agricultural YES
Medical Yes
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
