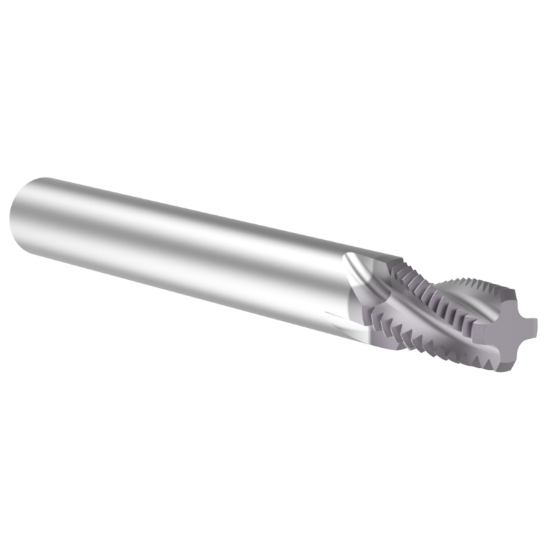

Thread MILL USA HDTM18NPT Carbide 1/4" x 18.00TPI NPT 0.363 Cut Dia Cylindrical 0.3750 3.500 OAL TIALN

ISO: HDTM18NPT

Need Assistance or Service? Please call 262-251-4020

Manufacturer: THREAD MILL USA
SKU: THRHDTM18NPT
Delivery date: 3-5 days
$170.33

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Made In USA Yes
Coating TiAlN
Shipping State Georgia
Application Thread Milling
Dimensional Specifications
Cutter Style Carbide Thread Mill
Thread Size 1/4"
Cut Rating <53Hrc Steel,Aluminum,Ductile Iron,Gray Iron,High Temp,Stainless Steel
Helix Angle 28°
Thread Type NPT
Overall Len 3.5000 88.90MM
Cutter Dia 0.3630 9.22MM
Machine Side Connection Size 0.3750 9.53MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Thread Pitch 18.00TPI
Length Of Cut 0.6800 17.27MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Automotive Yes
Job Shop Yes
Mold Yes
Agricultural YES
Medical Yes
Energy Yes
