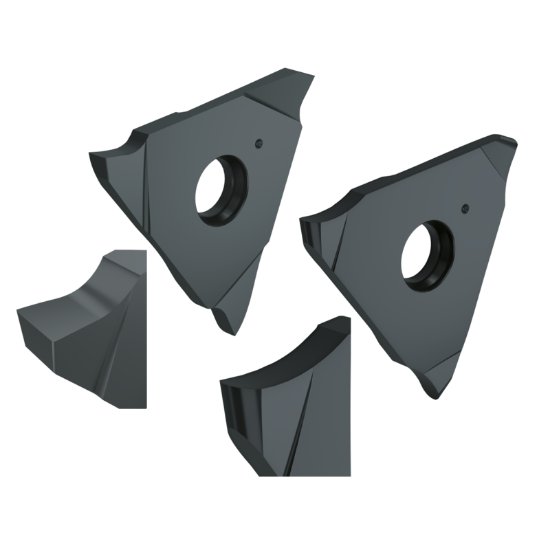

Picture of TE14F-100-3001ER-GA AP5020 Arno Rouse 116197 Grooving Insert 0.0390 0.99mm Wide 0.0039 0.10mm Radius

TE14F-100-3001ER-GA AP5020 Arno Rouse 116197 Grooving Insert 0.0390 0.99mm Wide 0.0039 0.10mm Radius

Part Number: ARN116197 ISO: TE14F-100-3001ER-GA AP5020 ANSI:TE14F-100-3001ER-GA AP5020

Need Assistance or Service? Please call 262-251-4020

Manufacturer: ARNO ROUSE
SKU: 1078686
Vendor: Sussex Tool and Supply
$48.10
This product has a minimum quantity of 10
ANRO ROUSE 116197 Triangle Grooving Positive TiCN A universal grade for low to medium cutting speed. Main application areas are steel and stainless steel, but also suitable for part-off and grooving of high temperature alloys and non-ferrous materials.
Products specifications
Attribute name Attribute value
Shipping State ILLINOIS
Made In USA NO
Cutter Type Insert
Cutting Edge Mat Carbide
Cut Rating Aluminum, Stainless Steel, <40HRC Steel, Ductile Iron, High Temp
Coating TICN
Insert/Tool INSERT
Cut Type General Purpose
Corner Radius 0.0039 0.10MM
Insert Style F
Insert Shape/Cutter Pocket Shape Triangle
Grade AP5020
Insert Type Positive
Insert Size Ic 14
Hand Right Hand
Depth Of Cut Max 0.1180
Insert Type/Oriantation On Edge
Cutting Width 0.0390 0.99MM
Swiss/Multi Spindle SWISS
