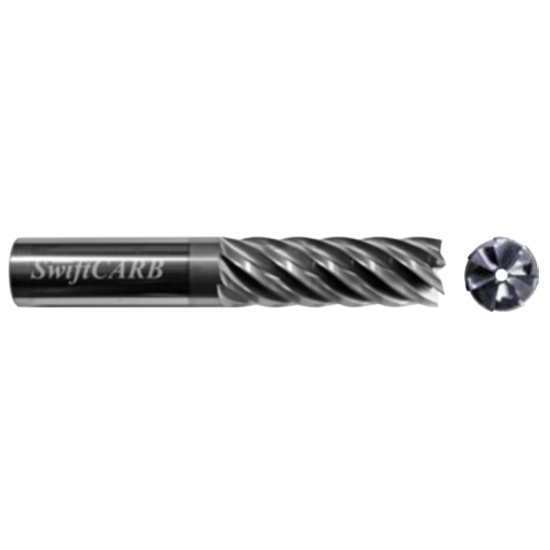

Picture of Swiftcarb XM05627CS005RL0M Dia 9/16 SH 0.5625 LOC 1.00 OAL3.00 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius0.1200 3.05mm

Swiftcarb XM05627CS005RL0M Dia 9/16 SH 0.5625 LOC 1.00 OAL3.00 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius0.1200 3.05mm

Part Number: SWIXM05627CS005RL0M 0.563 x 0.563 x 1.000 x 3.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SWIFTCARB
SKU: 1278391
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
SWIFTCARB Variable Helix End Mill Carbide AlTiN Corner Radius 0.1200 3.05MM Standard Flute Flutes 7 Single End SWIFT CARB Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Washington
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <48HRC Steel, Stainless Steel, High Temp
Coating ALTIN
Mach Side Connection Size 0.5625 14.29MM
Overall Length 3.0000 76.20MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.5625 14.29MM - 9/16
Flutes/Inserts 7
Tool Dia 0.5625 14.29MM - 9/16
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 1.0000 25.40MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.1200 3.05MM
Inch/Metric Inch
Helix Angle Variable
Center Cutting Center Cutting
