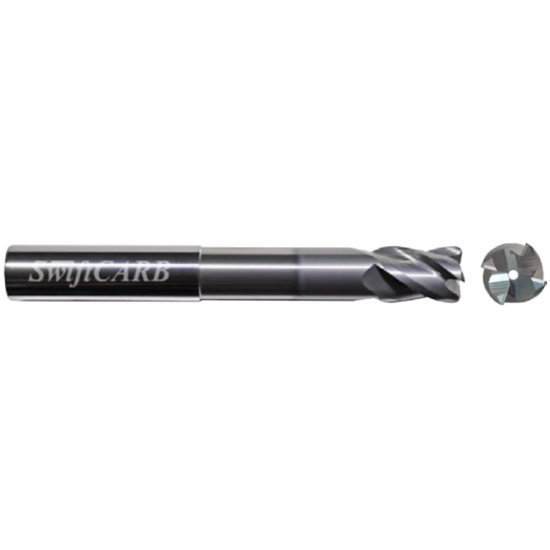

Picture of Swiftcarb XD037548IGS9T6CM Dia 3/8 SH 0.3750 LOC 0.50 OAL4.00 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius0.0600 1.52mm

Swiftcarb XD037548IGS9T6CM Dia 3/8 SH 0.3750 LOC 0.50 OAL4.00 End Mill Standard Flute Variable Helix Carbide AlTiN Single End Corner Radius0.0600 1.52mm

Part Number: SWIXD037548IGS9T6CM 0.375 x 0.375 x 0.500 x 4.000
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1276567
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing

Description

SWIFTCARB Variable Helix End Mill Carbide AlTiN Corner Radius 0.0600 1.52MM Standard Flute Flutes 4 Single End SWIFT CARB Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Washington
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Thru Coolant
Length Type Standard / With Neck
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Non Center Cutting
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 4
Tool Dia 0.3750 9.53MM - 3/8
Length Of Cut 0.5000 12.70MM
Neck Length 2.5000 63.50MM
Geometry & Angles
Corner Radius 0.0600 1.52MM
Helix Angle Variable
Performance & Capacity
Cut Rating Graphite, Aluminum, Plastic
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
