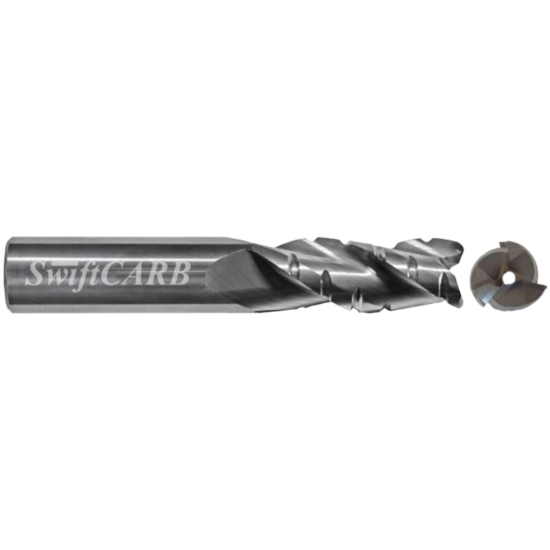

SWIFTCARB AV10003KA00LTC00 DIA 1 SH 1.00 LOC 4.00 OAL 7.00 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius 0.0600 1.52MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SWIFTCARB
SKU: SWIAV10003KA00LTC00
Delivery date: 3-5 days
$438.09

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Shipping State Washington
Application Copy Milling, Face Milling, Profile Milling, Slot Milling, Side Milling
Package Size 1
Made In USA Yes
Dimensional Specifications
Corner Radius 0.0600 1.52MM
Cutter Dia 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 1.0000 25.40MM
Inch/Metric Inch
Dimension Description 1.000 x 1.000 x 4.000 x 7.000
Overall Len 7.0000 177.80MM
Single/Double End Single End
End Of Tool Shape Corner Radius
Helix Angle Variable
Length Type Standard
Length Of Cut 4.0000 101.60MM
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
Energy Yes
Medical Yes
Aerospace Yes
Mold Yes
