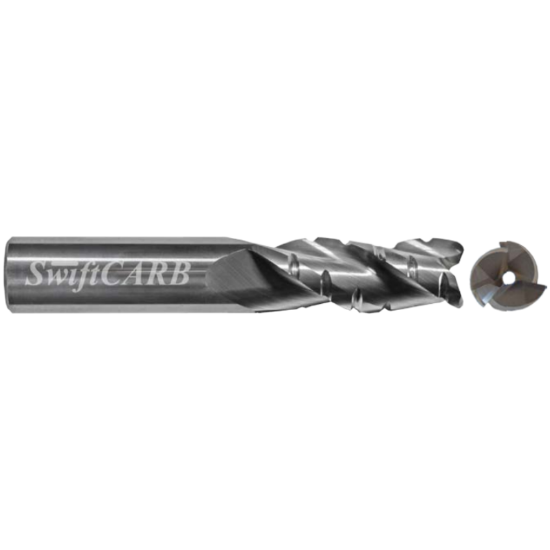

SWIFTCARB AV07503F800ETCC0 DIA 3/4 SH 0.7500 LOC 1.8750 OAL 5.00 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius 0.0600 1.52MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SWIFTCARB
SKU: SWIAV07503F800ETCC0
Delivery date: 3-5 days
$200.84

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Profile Milling, Slot Milling, Face Milling, Side Milling, Copy Milling
Package Size 1
Shipping State Washington
Made In USA Yes
Performance Rating High Performance
Dimensional Specifications
Length Of Cut 1.8750 47.63MM
Length Type Standard
Dimension Description 0.750 x 0.750 x 1.875 x 5.000
End Of Tool Shape Corner Radius
Helix Angle Variable
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Single/Double End Single End
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Overall Len 5.0000 127.00MM
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Corner Radius 0.0600 1.52MM
Cutting & Machining Properties
Coolant Thru Yes
Cutting Edge Mat Carbide
Center Cutting No
Industry-Specific Applications
Medical Yes
Energy Yes
Aerospace Yes
Mold Yes
Job Shop Yes
