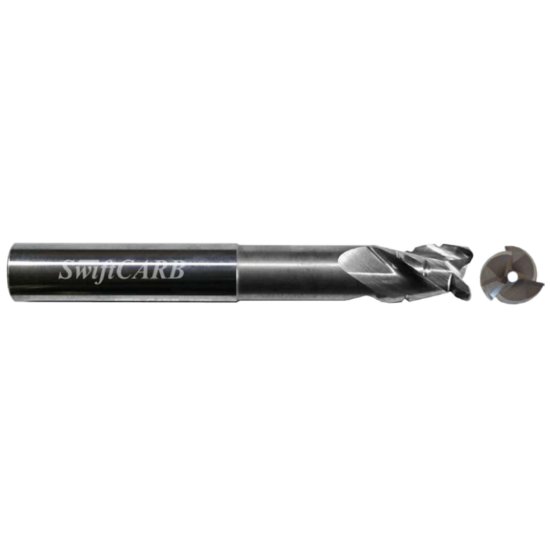

Picture of Swiftcarb AV06253CIFK9TCC0 Dia 5/8 SH 0.6250 LOC 0.9370 OAL4.00 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius0.0600 1.52mm

Swiftcarb AV06253CIFK9TCC0 Dia 5/8 SH 0.6250 LOC 0.9370 OAL4.00 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius0.0600 1.52mm

Part Number: SWIAV06253CIFK9TCC0 0.625 x 0.625 x 0.937 x 4.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SWIFTCARB
SKU: 1276463
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
SWIFTCARB Variable Helix End Mill Carbide Uncoated Corner Radius 0.0600 1.52MM Standard Flute Flutes 3 Single End SWIFT CARB Carbide
Products specifications
Attribute name Attribute value
Shipping State Washington
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Mach Side Connection Size 0.6250 15.88MM
Overall Length 4.0000 101.60MM
Coolant Thru Thru Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 3
Tool Dia 0.6250 15.88MM - 5/8
Length Type Standard / With Neck
Performance Rating High Performance
Length Of Cut 0.9370 23.80MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0600 1.52MM
Inch/Metric Inch
Helix Angle Variable
Center Cutting Non Center Cutting
Neck Length 2.0000 50.80MM
