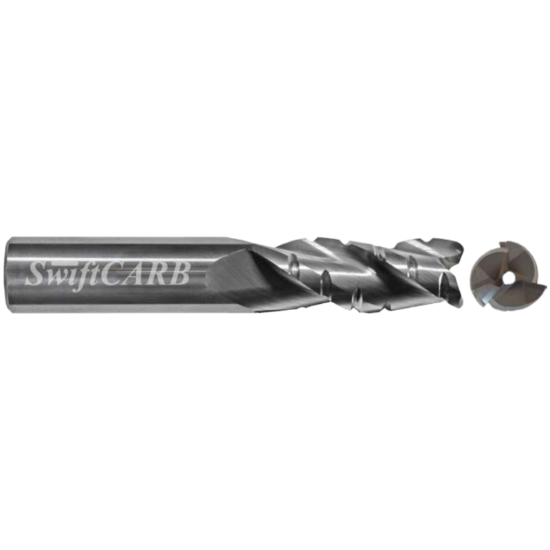

SWIFTCARB AV06253A6005TCC0 DIA 5/8 SH 0.6250 LOC 0.6250 OAL 3.00 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius 0.0600 1.52MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SWIFTCARB
SKU: SWIAV06253A6005TCC0
Delivery date: 3-5 days
$122.61

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Side Milling, Profile Milling, Slot Milling, Copy Milling, Face Milling
Made In USA Yes
Package Size 1
Shipping State Washington
Dimensional Specifications
Dimension Description 0.625 x 0.625 x 0.625 x 3.000
Cut Rating Aluminum, Graphite, Plastic
Cutter Style Carbide Bull Nose Finisher
Corner Radius 0.0600 1.52MM
Length Of Cut 0.6250 15.88MM
Length Type Standard
Cutter Dia 0.6250 15.88MM - 5/8
Overall Len 3.0000 76.20MM
End Of Tool Shape Corner Radius
Helix Angle Variable
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Machine Side Connection Size 0.6250 15.88MM
Single/Double End Single End
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting No
Coolant Thru Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
Energy Yes
Mold Yes
