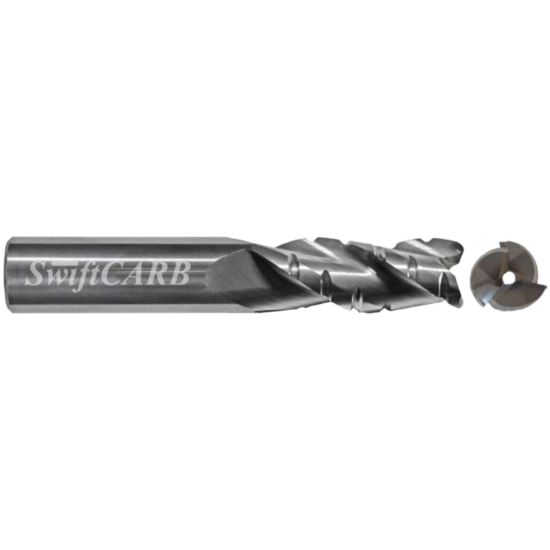

SWIFTCARB AV03753DM005T6C0 DIA 3/8 SH 0.3750 LOC 1.3120 OAL 3.00 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius 0.0300 0.76MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SWIFTCARB
SKU: SWIAV03753DM005T6C0
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Side Milling, Copy Milling, Profile Milling, Slot Milling, Face Milling
Made In USA Yes
Package Size 1
Shipping State Washington
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Cutter Style Carbide Bull Nose Finisher
Overall Len 3.0000 76.20MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Machine Side Connection Size 0.3750 9.53MM
End Of Tool Shape Corner Radius
Helix Angle Variable
Length Type Standard
Dimension Description 0.375 x 0.375 x 1.312 x 3.000
Corner Radius 0.0300 0.76MM
Length Of Cut 1.3120 33.32MM
Single/Double End Single End
Cutter Dia 0.3750 9.53MM - 3/8
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting No
Coolant Thru Yes
Industry-Specific Applications
Job Shop Yes
Medical Yes
Energy Yes
Aerospace Yes
Mold Yes
