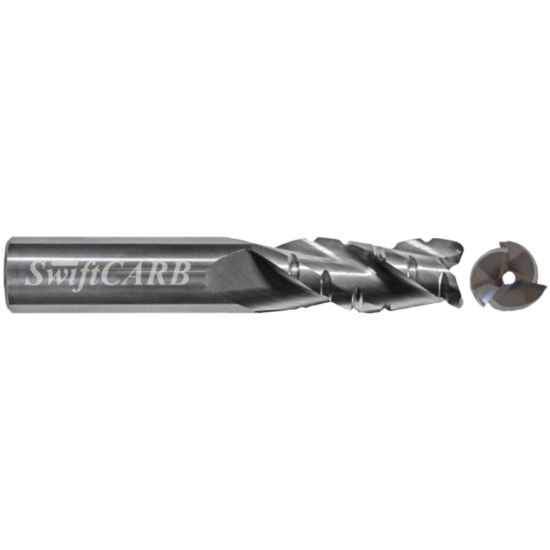

SWIFTCARB AV03753BU003T600 DIA 3/8 SH 0.3750 LOC 0.7500 OAL 2.50 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius 0.0300 0.76MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SWIFTCARB
SKU: SWIAV03753BU003T600
Delivery date: 3-5 days
$47.91

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Shipping State Washington
Application Side Milling, Slot Milling, Face Milling, Profile Milling, Copy Milling
Made In USA Yes
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Cutter Dia 0.3750 9.53MM - 3/8
Length Of Cut 0.7500 19.05MM
Dimension Description 0.375 x 0.375 x 0.750 x 2.500
End Of Tool Shape Corner Radius
Helix Angle Variable
Corner Radius 0.0300 0.76MM
Overall Len 2.5000 63.50MM
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Medical Yes
Energy Yes
