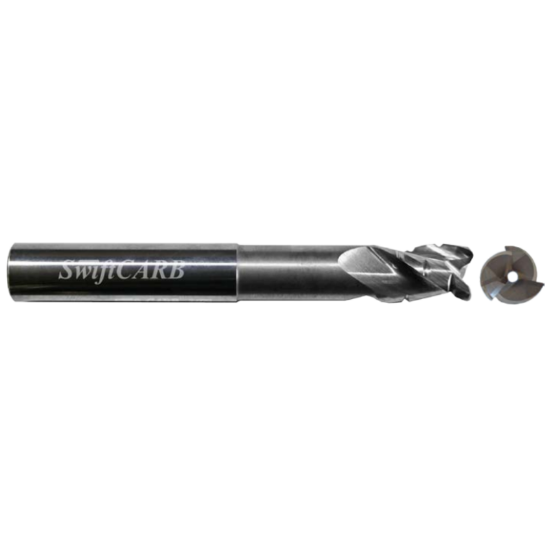

SWIFTCARB AV037536WJ4ET600 DIA 3/8 SH 0.3750 LOC 0.3750 OAL 5.00 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius 0.0300 0.76MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SWIFTCARB
SKU: SWIAV037536WJ4ET600
Delivery date: 3-5 days
$126.57

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Side Milling, Copy Milling, Face Milling, Profile Milling
Performance Rating High Performance
Shipping State Washington
Made In USA Yes
Package Size 1
Dimensional Specifications
Neck Length 3.5000 88.90MM
Cutter Dia 0.3750 9.53MM - 3/8
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard / With Neck
End Of Tool Shape Corner Radius
Helix Angle Variable
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Dimension Description 0.375 x 0.375 x 0.375 x 5.000
Overall Len 5.0000 127.00MM
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 0.3750 9.53MM
Inch/Metric Inch
Corner Radius 0.0300 0.76MM
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Medical Yes
Energy Yes
