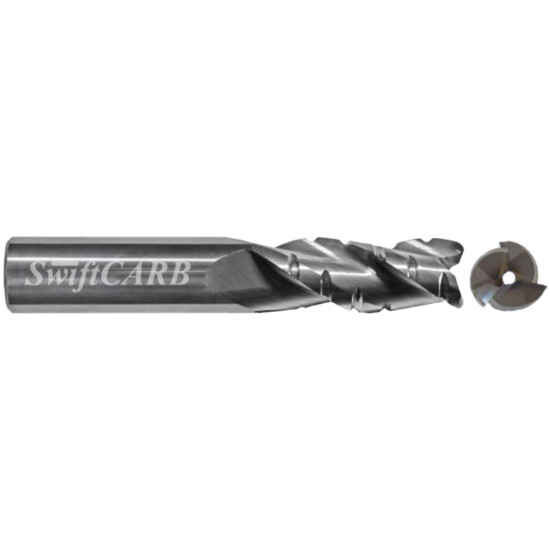

SWIFTCARB AV037536W001T6C0 DIA 3/8 SH 0.3750 LOC 0.3750 OAL 2.00 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius 0.0300 0.76MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SWIFTCARB
SKU: SWIAV037536W001T6C0
Delivery date: 3-5 days
$56.49

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Side Milling, Profile Milling, Slot Milling, Face Milling, Copy Milling
Made In USA Yes
Shipping State Washington
Package Size 1
Dimensional Specifications
Dimension Description 0.375 x 0.375 x 0.375 x 2.000
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Cutter Style Carbide Bull Nose Finisher
End Of Tool Shape Corner Radius
Helix Angle Variable
Machine Side Connection Size 0.3750 9.53MM
Overall Len 2.0000 50.80MM
Length Type Standard
Cutter Dia 0.3750 9.53MM - 3/8
Flutes/Inserts 3
Corner Radius 0.0300 0.76MM
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 0.3750 9.53MM
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
Center Cutting No
Industry-Specific Applications
Medical Yes
Job Shop Yes
Aerospace Yes
Mold Yes
Energy Yes
