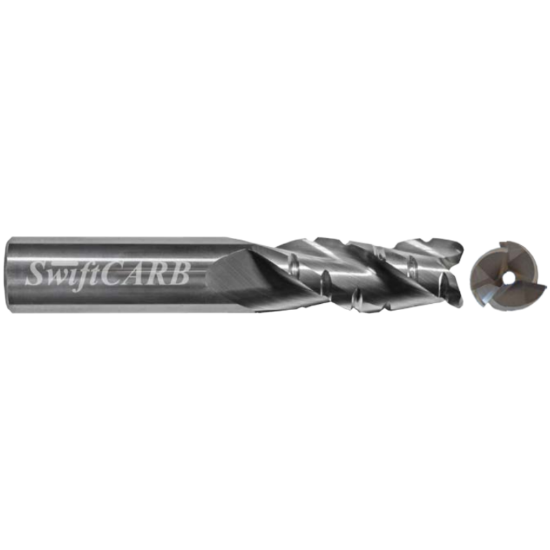

SWIFTCARB AV03123BY003T6C0 DIA 5/16 SH 0.3125 LOC 0.7810 OAL 2.50 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius 0.0300 0.76MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SWIFTCARB
SKU: SWIAV03123BY003T6C0
Delivery date: 3-5 days
$58.40

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Copy Milling, Profile Milling, Slot Milling
Made In USA Yes
Package Size 1
Performance Rating High Performance
Shipping State Washington
Dimensional Specifications
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Corner Radius 0.0300 0.76MM
Overall Len 2.5000 63.50MM
Single/Double End Single End
Length Type Standard
Cutter Dia 0.3125 7.94MM - 5/16
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Dimension Description 0.313 x 0.313 x 0.781 x 2.500
Machine Side Connection Size 0.3125 7.94MM
Length Of Cut 0.7810 19.84MM
End Of Tool Shape Corner Radius
Helix Angle Variable
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru Yes
Center Cutting No
Industry-Specific Applications
Energy Yes
Aerospace Yes
Mold Yes
Job Shop Yes
Medical Yes
