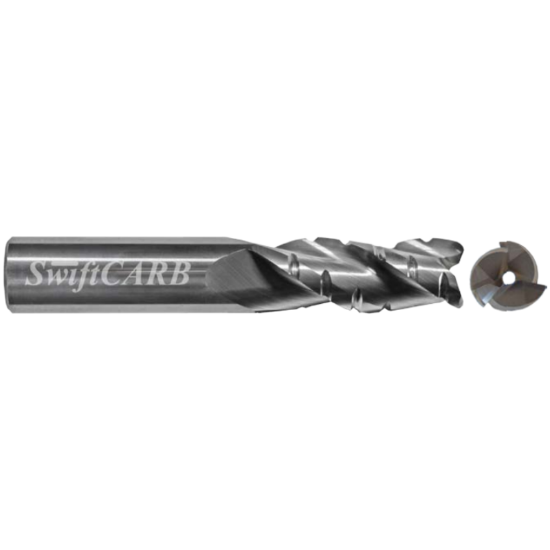

SWIFTCARB AV0312384001T6C0 DIA 5/16 SH 0.3125 LOC 0.4680 OAL 2.00 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius 0.0300 0.76MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SWIFTCARB
SKU: SWIAV0312384001T6C0
Delivery date: 3-5 days
$51.89

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Copy Milling, Side Milling, Face Milling, Profile Milling
Performance Rating High Performance
Shipping State Washington
Made In USA Yes
Package Size 1
Dimensional Specifications
End Of Tool Shape Corner Radius
Helix Angle Variable
Dimension Description 0.313 x 0.313 x 0.468 x 2.000
Length Type Standard
Machine Side Connection Size 0.3125 7.94MM
Overall Len 2.0000 50.80MM
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 0.4680 11.89MM
Inch/Metric Inch
Cutter Dia 0.3125 7.94MM - 5/16
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Corner Radius 0.0300 0.76MM
Single/Double End Single End
Cutting & Machining Properties
Center Cutting No
Cutting Edge Mat Carbide
Coolant Thru Yes
Industry-Specific Applications
Medical Yes
Job Shop Yes
Aerospace Yes
Mold Yes
Energy Yes
