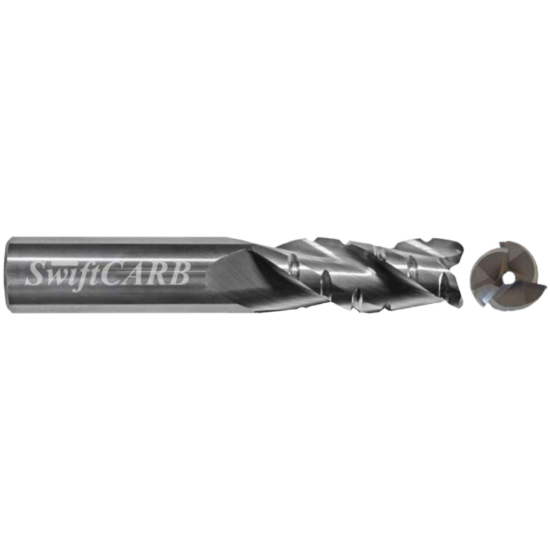

SWIFTCARB AV0312362001T600 DIA 5/16 SH 0.3125 LOC 0.3120 OAL 2.00 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius 0.0300 0.76MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SWIFTCARB
SKU: SWIAV0312362001T600
Delivery date: 3-5 days
$33.36

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Profile Milling, Slot Milling, Copy Milling
Made In USA Yes
Performance Rating High Performance
Shipping State Washington
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Corner Radius 0.0300 0.76MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Helix Angle Variable
Cutter Dia 0.3125 7.94MM - 5/16
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Dimension Description 0.313 x 0.313 x 0.312 x 2.000
Machine Side Connection Size 0.3125 7.94MM
Overall Len 2.0000 50.80MM
Length Of Cut 0.3120 7.92MM
Length Type Standard
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Medical Yes
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
