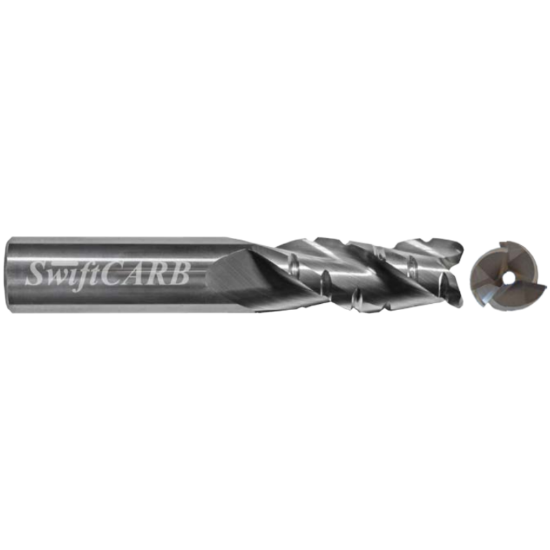

SWIFTCARB AV025038I001T600 DIA 1/4 SH 0.2500 LOC 0.50 OAL 2.00 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius 0.0300 0.76MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SWIFTCARB
SKU: SWIAV025038I001T600
Delivery date: 3-5 days
$33.12

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Side Milling, Profile Milling, Slot Milling, Copy Milling, Face Milling
Made In USA Yes
Package Size 1
Shipping State Washington
Dimensional Specifications
Machine Side Connection Size 0.2500 6.35MM
Cutter Style Carbide Bull Nose Finisher
Overall Len 2.0000 50.80MM
Length Type Standard
Length Of Cut 0.5000 12.70MM
Dimension Description 0.250 x 0.250 x 0.500 x 2.000
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
End Of Tool Shape Corner Radius
Helix Angle Variable
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Corner Radius 0.0300 0.76MM
Single/Double End Single End
Cutter Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 3
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
Medical Yes
Energy Yes
Aerospace Yes
Mold Yes
