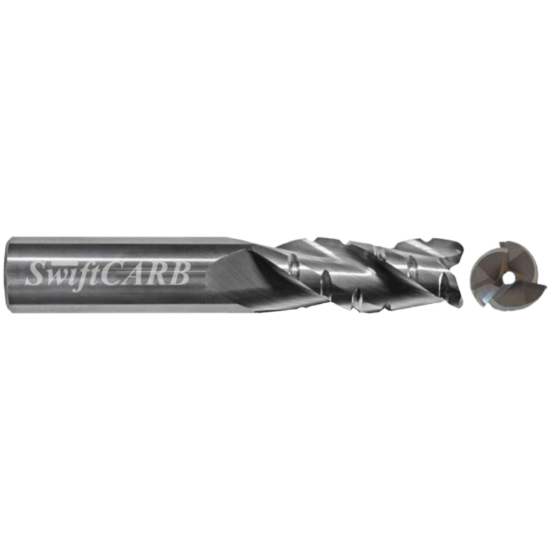

SWIFTCARB AV0187384001T300 DIA 3/16 SH 0.1875 LOC 0.4680 OAL 2.00 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius 0.0150 0.38MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SWIFTCARB
SKU: SWIAV0187384001T300
Delivery date: 3-5 days
$33.23

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Profile Milling, Slot Milling, Copy Milling
Made In USA Yes
Performance Rating High Performance
Shipping State Washington
Package Size 1
Dimensional Specifications
Cutter Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Dimension Description 0.188 x 0.188 x 0.468 x 2.000
Single/Double End Single End
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Length Type Standard
End Of Tool Shape Corner Radius
Helix Angle Variable
Machine Side Connection Size 0.1875 4.76MM
Overall Len 2.0000 50.80MM
Corner Radius 0.0150 0.38MM
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 0.4680 11.89MM
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Mold Yes
Energy Yes
Medical Yes
Job Shop Yes
