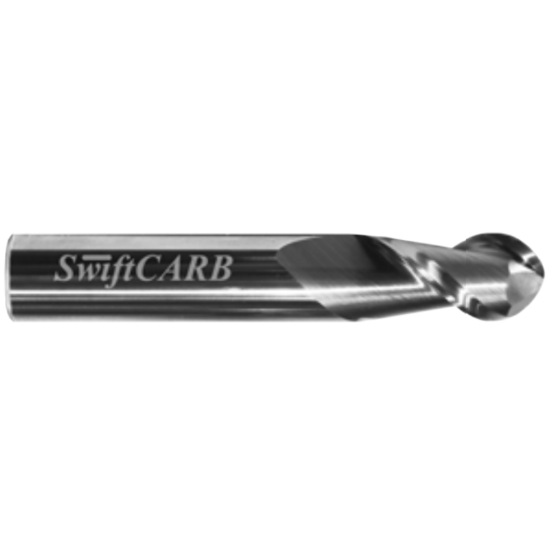

SWIFTCARB AC12502CS009B000 DIA 1-1/4 SH 1.2500 LOC 1.00 OAL 4.00 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SWIFTCARB
SKU: SWIAC12502CS009B000
Delivery date: 3-5 days
$378.57

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Profile Milling, Copy Milling, Ball Milling, Ball Slot Milling
Made In USA Yes
Package Size 1
Performance Rating High Performance
Shipping State Washington
Dimensional Specifications
Overall Len 4.0000 101.60MM
Dimension Description 1.250 x 1.250 x 1.000 x 4.000
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Flutes/Inserts 2
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
End Of Tool Shape Ball Nose
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 1.2500 31.75MM - 1-1/4
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 1.0000 25.40MM
Inch/Metric Inch
Machine Side Connection Size 1.2500 31.75MM
Length Type Standard
Helix Angle Variable
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Medical Yes
