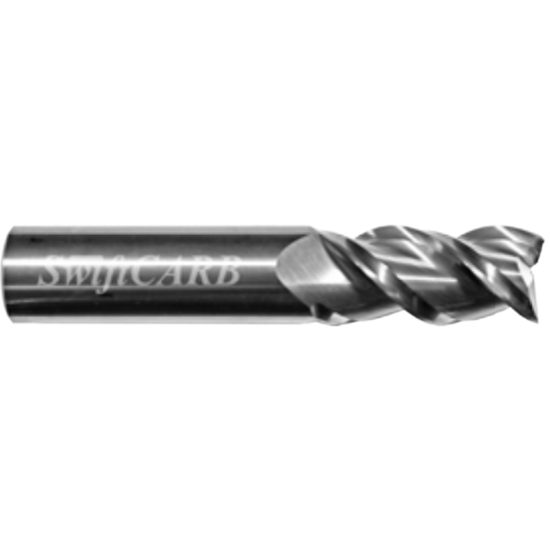

SWIFTCARB AC05003A6G69R300 DIA 1/2 SH 0.50 LOC 0.6250 OAL 4.00 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Corner Radius 0.0150 0.38MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SWIFTCARB
SKU: SWIAC05003A6G69R300
Delivery date: 3-5 days
$101.53

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Side Milling, Copy Milling, Profile Milling, Slot Milling, Face Milling
Made In USA Yes
Package Size 1
Shipping State Washington
Dimensional Specifications
Corner Radius 0.0150 0.38MM
Cut Rating Aluminum, Graphite, Plastic
Neck Length 2.2500 57.15MM
Overall Len 4.0000 101.60MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard / With Neck
Machine Side Connection Size 0.5000 12.70MM
End Of Tool Shape Corner Radius
Helix Angle Variable
Length Of Cut 0.6250 15.88MM
Dimension Description 0.500 x 0.500 x 0.625 x 4.000
Single/Double End Single End
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
Energy Yes
Mold Yes
