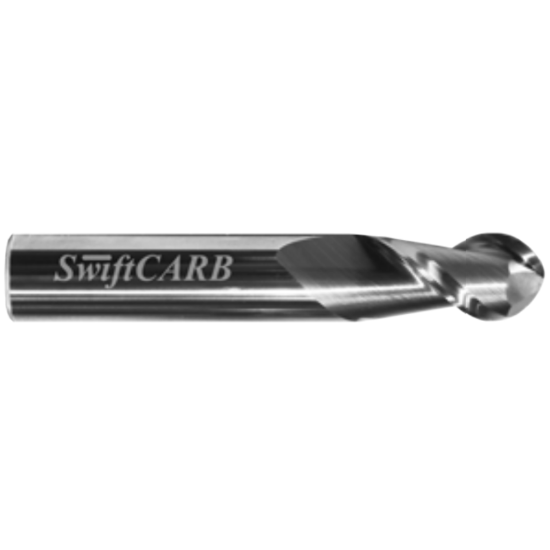

SWIFTCARB AC03752EW007B000 DIA 3/8 SH 0.3750 LOC 1.7500 OAL 3.50 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SWIFTCARB
SKU: SWIAC03752EW007B000
Delivery date: 3-5 days
$62.84

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Profile Milling, Ball Milling, Side Milling, Copy Milling, Ball Slot Milling
Package Size 1
Made In USA Yes
Performance Rating High Performance
Shipping State Washington
Dimensional Specifications
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Machine Side Connection Size 0.3750 9.53MM
Length Of Cut 1.7500 44.45MM
Flutes/Inserts 2
Length Type Standard
Cutter Dia 0.3750 9.53MM - 3/8
End Of Tool Shape Ball Nose
Dimension Description 0.375 x 0.375 x 1.750 x 3.500
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Overall Len 3.5000 88.90MM
Helix Angle Variable
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
Medical Yes
