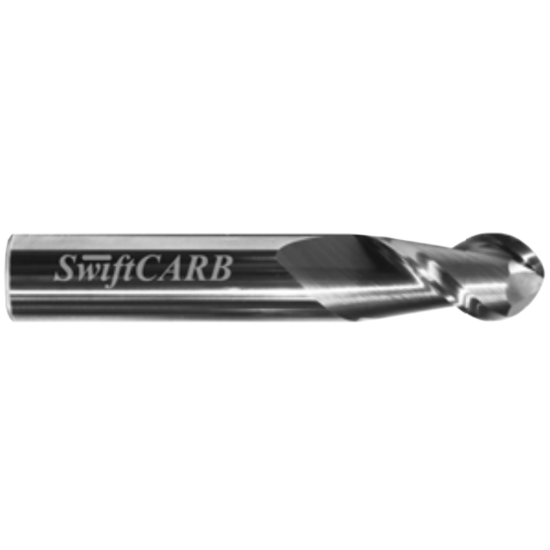

SWIFTCARB AC03752DG005B000 DIA 3/8 SH 0.3750 LOC 1.2500 OAL 3.00 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SWIFTCARB
SKU: SWIAC03752DG005B000
Delivery date: 3-5 days
$45.91

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Milling, Copy Milling, Ball Slot Milling, Profile Milling, Side Milling
Package Size 1
Performance Rating High Performance
Made In USA Yes
Shipping State Washington
Dimensional Specifications
Cutter Dia 0.3750 9.53MM - 3/8
Flutes/Inserts 2
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Dimension Description 0.375 x 0.375 x 1.250 x 3.000
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Inch/Metric Inch
Length Of Cut 1.2500 31.75MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Helix Angle Variable
Overall Len 3.0000 76.20MM
End Of Tool Shape Ball Nose
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Mold Yes
Medical Yes
Energy Yes
