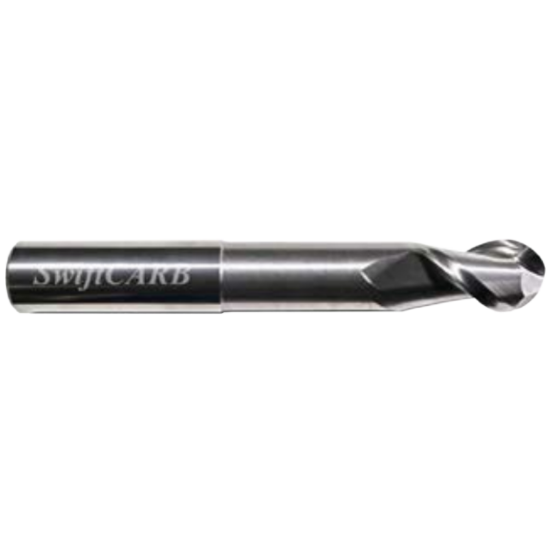

SWIFTCARB AC037528IKAIB000 DIA 3/8 SH 0.3750 LOC 0.50 OAL 6.00 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SWIFTCARB
SKU: SWIAC037528IKAIB000
Delivery date: 3-5 days
$87.56

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Washington
Made In USA Yes
Application Copy Milling, Side Milling, Ball Slot Milling, Profile Milling, Ball Milling
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Cutter Dia 0.3750 9.53MM - 3/8
End Of Tool Shape Ball Nose
Machine Side Connection Type Cylindrical
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Inch/Metric Inch
Neck Length 4.0000 101.60MM
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard / With Neck
Dimension Description 0.375 x 0.375 x 0.500 x 6.000
Overall Len 6.0000 152.40MM
Length Of Cut 0.5000 12.70MM
Flutes/Inserts 2
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Helix Angle Variable
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Medical Yes
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
