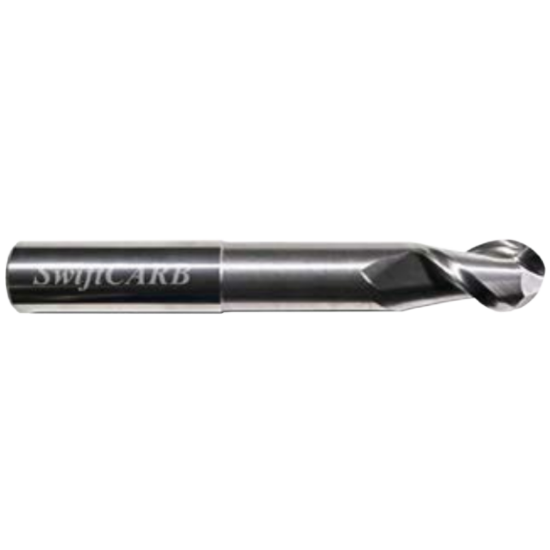

SWIFTCARB AC037528ICS3B000 DIA 3/8 SH 0.3750 LOC 0.50 OAL 2.50 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SWIFTCARB
SKU: SWIAC037528ICS3B000
Delivery date: 3-5 days
$55.40

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Slot Milling, Profile Milling, Side Milling, Ball Milling, Copy Milling
Made In USA Yes
Shipping State Washington
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Flutes/Inserts 2
Overall Len 2.5000 63.50MM
Cutter Style Carbide Ball Finisher
Helix Angle Variable
Length Of Cut 0.5000 12.70MM
Cutter Dia 0.3750 9.53MM - 3/8
Neck Length 1.0000 25.40MM
End Of Tool Shape Ball Nose
Cut Rating Aluminum, Graphite, Plastic
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Dimension Description 0.375 x 0.375 x 0.500 x 2.500
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard / With Neck
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Single/Double End Single End
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Medical Yes
Mold Yes
Aerospace Yes
Job Shop Yes
Energy Yes
