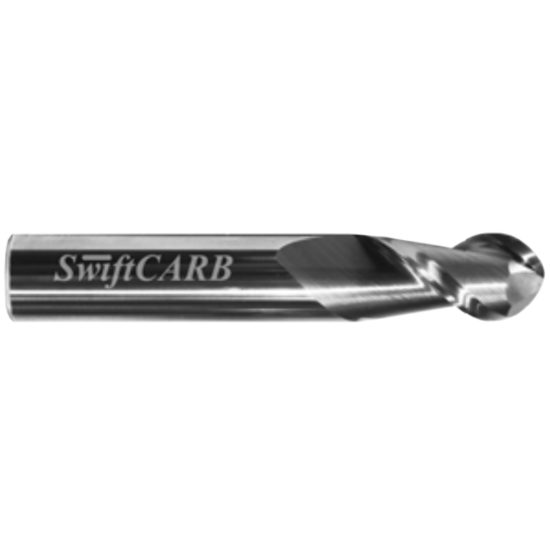

SWIFTCARB AC037528I001B000 DIA 3/8 SH 0.3750 LOC 0.50 OAL 2.00 End Mill Standard Flute Variable Helix Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: SWIFTCARB
SKU: SWIAC037528I001B000
Delivery date: 3-5 days
$27.59

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Ball Slot Milling, Profile Milling, Ball Milling, Side Milling
Shipping State Washington
Performance Rating High Performance
Package Size 1
Made In USA Yes
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutter Dia 0.3750 9.53MM - 3/8
End Of Tool Shape Ball Nose
Cut Rating Aluminum, Graphite, Plastic
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Cutter Style Carbide Ball Finisher
Helix Angle Variable
Overall Len 2.0000 50.80MM
Dimension Description 0.375 x 0.375 x 0.500 x 2.000
Single/Double End Single End
Machine Side Connection Size 0.3750 9.53MM
Flutes/Inserts 2
Length Type Standard
Length Of Cut 0.5000 12.70MM
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Energy Yes
Aerospace Yes
Job Shop Yes
Mold Yes
